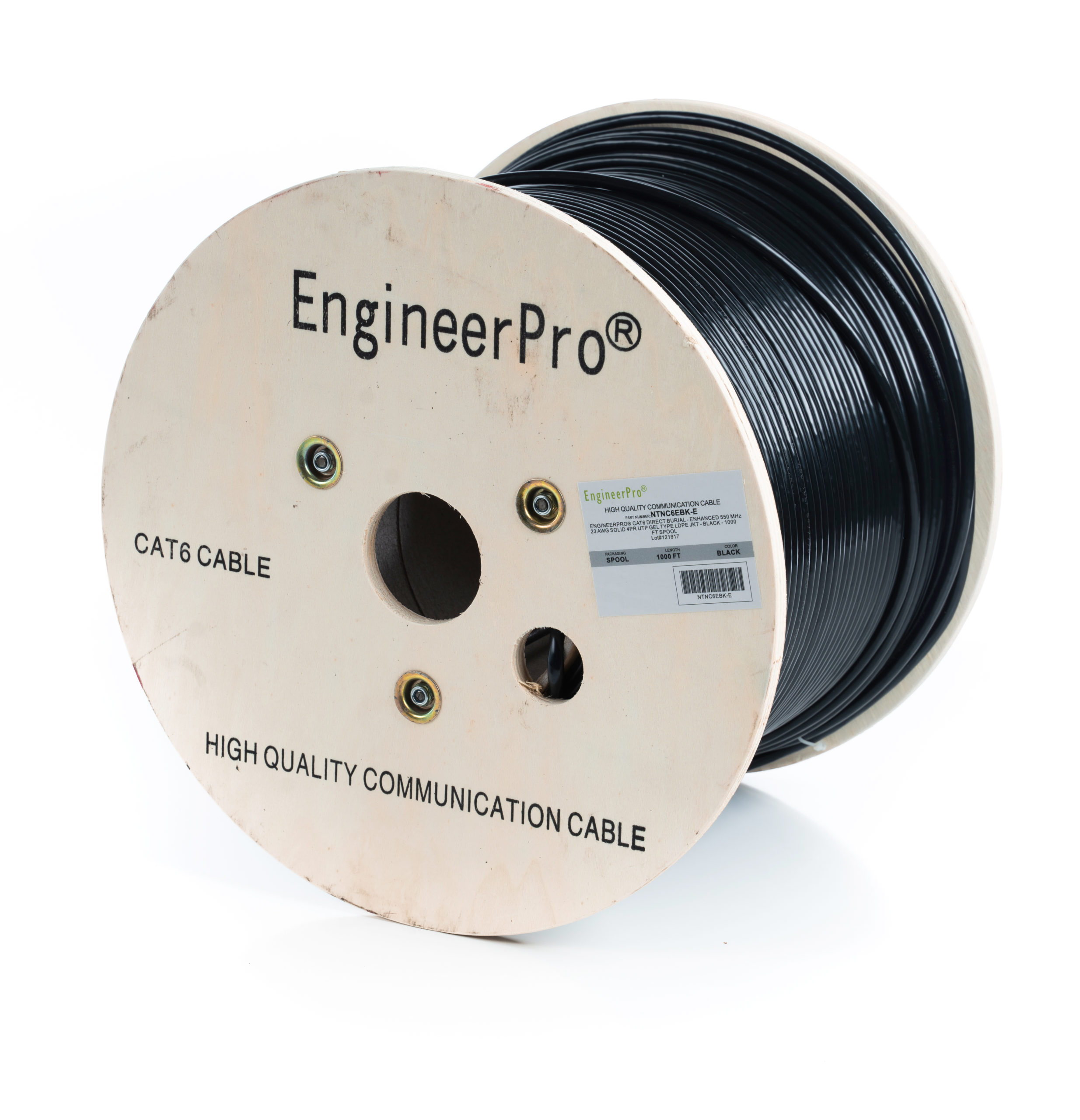

CAT6 DIRECT BURIAL- 23 AWG SOLID 4PR UTP TIA/EIA 568.2-D, GEL TYPE, LLDPE JKT- BLACK- 1000 FT SPOOL

$154.00

“Coming Soon: Please contact sales@cablingus.com for more info”

SKU: NTNC6EBK-DB Categories: , ,

Description

CAT6 DIRECT BURIAL- 23 AWG SOLID 4PR UTP TIA/EIA 568.2-D, GEL TYPE, LLDPE JKT- BLACK

  • For direct burial applications.
  • Meets or exceeds requirements of ANSI/TIA-568.2-D Category 6e and ISO 11801 2nd Edition Class D channel standards.
  • Meets or exceeds requirements of ANSI/TIA-568.2-D and IEC 61156-5 Category 6e component standards.
  • Third party tested to Category 6e channel compliance.
  • Meets requirements of IEEE 802.3af and IEEE 802.3at for PoE applications.
  • Descending length cable markings enable easy identification of remaining cable which reduces installation time and cable scrap.
  • UL Verified.
Construction Characteristics
Conductor Material Solid Bare Copper
Size 23AWG X 4P
Construction 1/0.57+/-0.004mm
Insulation Material HDPE
Min.Thickness 0.20mm
AVG.Thickness 0.22mm
Diameter 1.03+/-0.1mm
Colors Blue- White/Blue
Orange-White/Orange
Green-White/Green
Brown-White/Brown
Screening Material Water Block Tape
Sheath Material LLDPE
Thickness 0.6+/-0.05mm
U.V Stability U.V Resistant
Diameter 6.8+/-0.50mm
Color Black
Bend Radius Min 20D/140mm
Electrical & Physical Characteristics
Operating Temperature Range – 20°C + 75°C
Conductor Resistance Max 72.2 ohm/km at 20°C
Dielectric Strength Min AC1.5KV
Spark Test 5.0KV
Insulation Unaged Tensile Strength 12.3Mpa
Elongation 150%
Aged Tensile Strength 9.8Mpa (100°C 168h)
Elongation 100% (100°C 168h)
Jacket Unaged Tensile Strength 10.8Mpa
Elongation 100%
Aged Tensile Strength 8.5Mpa (100°C 168h)
Elongation 50% (100°C 168h)
Rated Voltage Max 300 Volts
DC Resistance Unbalance Max 5%
Pair-to-Ground Capacitance Max 3300pF/km
Characteristic Impedance 100+/-150HM
Nominal Velocity of Propagation (%) 67~69
Propagation Delay Max 536ns/100m
Delay Skew Max 45ns/100m

Additional information

Weight 44 lbs
Dimensions 15 × 15 × 12 in
NTNC6EBK-DB Data Sheet
