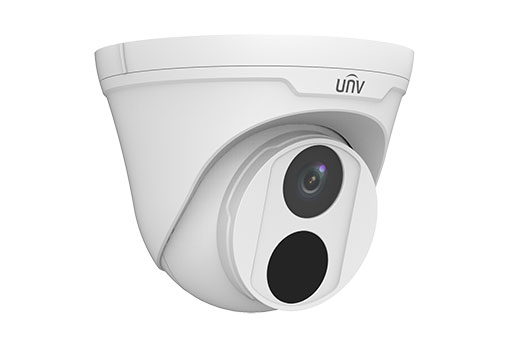

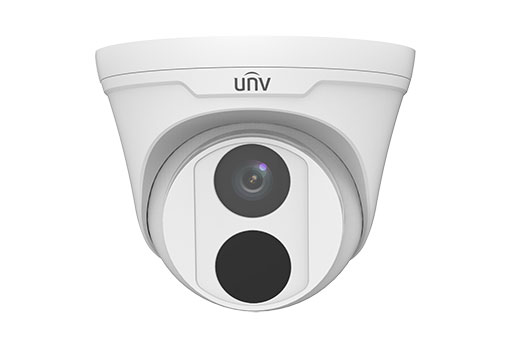

4MP IR Ultra 265 Outdoor Turret Dome IP Security Camera

$55.00

“Coming Soon: Please contact sales@cablingus.com for more info”

SKU: IPC3614LR3-PF28-D Categories: , ,

Description

          • Optics

            * Day/night functionality

            * Smart IR, up to 30 m (98 ft) IR distance

            * 3D DNR (Digital Noise Reduction)

            Compression

            * Ultra 265,H.265,H.264,MJPEG

            * ROI (Region of Interest)

            Network

            * ONVIF Conformance

            Structure

            * Wide temperature range: -30°C to 60°C (-22°F to 140°F)

            * Wide voltage range of ±25%

            * IP67

            * 3-Axis

            IPC3614LR3-PF28-D
            Camera
            Sensor 1/3″, 4.0 megapixel, progressive scan, CMOS
            Lens 2.8mm@F2.0
            DORI Distance Lens (mm) Detect (m) Observe (m) Recognize (m) Identify (m)
            2.8 63 25.2 12.6 6.3
            4 90 36 18 9
            Angle of view (H) 104.4°
            Angle of View (V) 54.4°
            Angle of View (O) 135.7°
            Adjustment angle Pan: 0° ~ 360° Tilt: 0° ~ 80° Rotate: 0° ~ 360°
            Shutter Auto/Manual, 1 ~ 1/100000s
            Min. Illumination Colour: 0.03Lux (F2.0, AGC ON)
            0Lux with IR
            Digital noise reduction 2D/3D DNR
            Day/Night IR-cut filter with auto switch (ICR)
            S/N >52dB
            IR Range Up to 30m (98 ft) IR range
            Wavelength 850nm
            IR On/Off Control Auto/Manual
            Defog Digital Defog
            WDR DWDR
            Video
            Video Compression Ultra 265, H.265, H.264, MJPEG
            H.264 code profile Baseline profile, Main Profile
            Frame Rate Main Stream: 4MP (2592*1520), Max 20fps;
            Sub Stream: 720P (1280*720), Max 20fps;
            Third Stream: D1 (720*576), Max 20fps
            Video Bit Rate 128 Kbps~16 Mbps
            OSD Up to 4 OSDs
            Privacy Mask Up to 4 areas
            ROI Up to 2 areas
            Motion Detection Up to 4 areas
            White Balance Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
            Digital noise reduction 2D/3D DNR
            Smart IR Support
            Flip Normal/Vertical/Horizontal/180°
            Dewarping NA
            HLC Supported
            BLC Supported
            Network
            Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL, QoS
            Compatible Integration ONVIF (Profile S, Profile T),API
            Client EZStation
            EZView
            EZLive
            Web Browser Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
            Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+
            Interface
            Network 10/100M Base-TX Ethernet
            Certifications
            Certifications CE: EN 60950-1
            UL: UL60950-1
            FCC: FCC Part 15
            General
            Power DC 12V±25%, PoE (IEEE 802.3af)
            Power consumption: Max 4W
            Dimensions (Ø x H) Φ118 x 96mm (Φ4.6” x 3.8”)
            Net Weight 0.35kg (0.77lb)
            Material Metal + Plastic
            Working Environment -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
            Strorage Environment -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
            Surge Protection 2KV
            Ingress Protection IP67

Additional information

Weight 1 lbs
Dimensions 6 × 6 × 6 in
UNV IPC3614LR3-PF28-D Data Sheet
